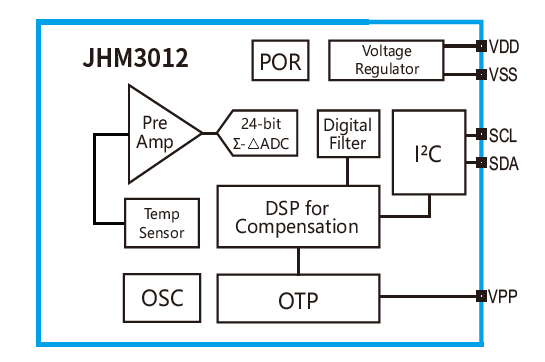

JHM3012 is a low-power high-resolution digital temperature sensor IC that communicates via I2C interface. It consists of a temperature sensor, an ADC and a digital signal processing unit. It features high temperature accuracy (±0.2℃ between 0℃ to 50℃) and high resolution (down to 0.003℃). It can operate within the supply voltage of 1.8V to 3.6V with a typical average current 4.7μA.

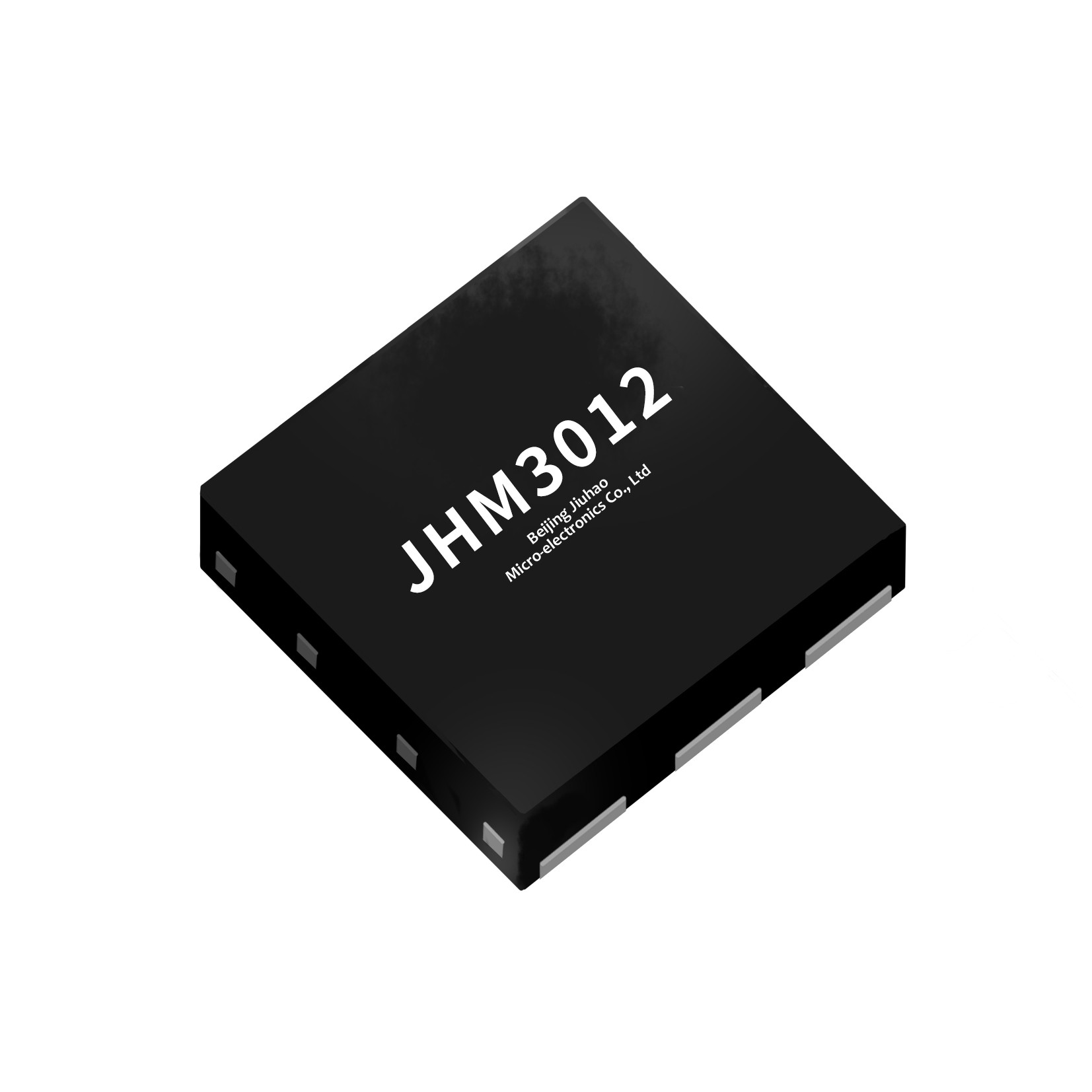

JHM3012 is an easy to integrate and use solution, featuring a factory calibrated sensor, integrated linearization, ideal for PT100 RTD replacement. The devices are available in 6-pin DFN footprint.

Features

• ±0.2℃(max)from 0℃to 50℃

• ±0.5℃(max)from -20℃to 85℃

• ±1.0℃(max)from -40℃to 125℃

• Operating temperature range:-40℃to 125℃

• Low power consumption :4.7μA、1Hz conversion;100nA sleep current

• Power supply voltage range:1.8V to 3.6V

• 24 bit resolution:0.003℃/LSB

• Settable I2C address、I2C interface、RTD substitute

Applications

• Electronic thermometer

• Wireless environment sensor

• Thermostat

• Automobile test equipment

• Wearable fitness&activity monitor

• Cold chain asset tracking

• Gas meters and calorimeters

• Temperature transmitter
